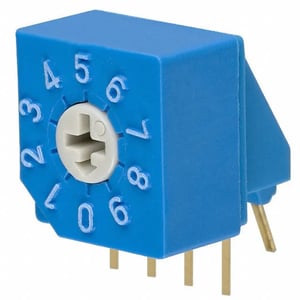

Image is for Reference Only
S-2031A
Manufacturer
Mfr. Part #
S-2031A
Category
SKU
S-2031A
Description
Dip Switch BCD Complement 10 Position Through Hole, Right Angle Rotary for Tool Actuator 100mA 5VDC
Stock Info
Available : 9115
Packaging
Bulk Pack
Std Package Qty
50
View All DIP Switches by Nidec
Specifications
| Actuator Level | Flush, Recessed |
| Actuator Type | Rotary for Tool |
| Body Material | Polybutylene Terephthalate (PBT) |
| Circuit | BCD Complement |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 100mA |
| Electrical Life | 10,000 Steps |
| Features | - |
| Height Above Board | 0.394" (10.00mm) |
| Length | 0.394" (10.00mm) |
| Mechanical Life | - |
| Mounting Type | Through Hole, Right Angle |
| Number Of Positions | 10 |
| Operating Temperature | -40°C ~ 85°C |
| Package | Bulk |
| Pitch | 0.100" (2.54mm), Full |
| Product Status | Active |
| Rohs Status | ROHS3 Compliant |
| Series | S-2000A |
| Standard Package | 50 |
| Termination Style | PC Pin |
| Voltage Rating | 5VDC |
| Washable | Yes |
| Datasheet |
