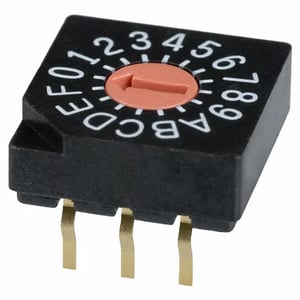

Image is for Reference Only
SD-1030
Manufacturer
Mfr. Part #
SD-1030
Category
SKU
SD-1030
Description
Dip Switch Hexadecimal Complement 16 Position Through Hole Rotary for Tool Actuator 100mA 5VDC
Stock Info
Available : 6574
Packaging
Bulk Pack
Std Package Qty
100
View All DIP Switches by Nidec
Specifications
| Actuator Level | Flush, Recessed |
| Actuator Type | Rotary for Tool |
| Body Material | Polyphenylene Sulfide (PPS) |
| Circuit | Hexadecimal Complement |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 100mA |
| Electrical Life | 20,000 Steps |
| Features | - |
| Height Above Board | 0.154" (3.90mm) |
| Length | 0.394" (10.00mm) |
| Mechanical Life | - |
| Mounting Type | Through Hole |
| Number Of Positions | 16 |
| Operating Temperature | -40°C ~ 85°C |
| Package | Bulk |
| Pitch | 0.100" (2.54mm), Full |
| Rohs Status | ROHS3 Compliant |
| Series | SD-1000 |
| Standard Package | 100 |
| Termination Style | PC Pin |
| Voltage Rating | 5VDC |
| Washable | No |
| Datasheet |
