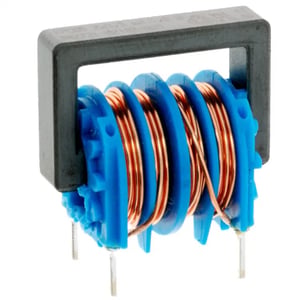

Part Image
Image is for Reference Only

B82731M2182A030

Manufacturer
TDK
Mfr. Part #
B82731M2182A030
Category
Common Mode Chokes
SKU
B82731M2182A030
Description
2 Line Common Mode Choke Through Hole 1.8A DCR 140mOhm (Typ)
Stock Info
Available : 14503
Packaging
Tray
Std Package Qty
800
View All Common Mode Chokes by TDK
Truspilot
Trustpilot Stars  4.9
Available Quantity : 14503
100% Purchase Protection
Original Products | Secure Payments

Specifications

Approval AgencyENEC, UR, VDE
Current Rating (Max)1.8A
Dc Resistance (Dcr) (Max)140mOhm (Typ)
Features-
Filter TypePower Line
Height (Max)0.807" (20.50mm)
Inductance @ Frequency3.3 mH @ 10 kHz
Mounting TypeThrough Hole
Number Of Lines2
Operating Temperature-40°C ~ 125°C
PackageTray
Package / CaseVertical, 4 PC Pin
Product StatusActive
Ratings-
Rohs StatusROHS3 Compliant
SeriesB82731
Size / Dimension0.827" L x 0.591" W (21.00mm x 15.00mm)
Standard Package800
Voltage Rating - Ac250V
Voltage Rating - Dc-
Datasheet

pdfB82731M2182A030
